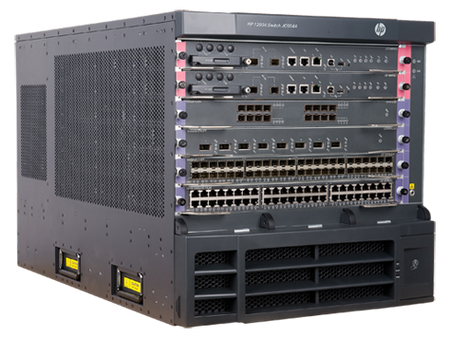

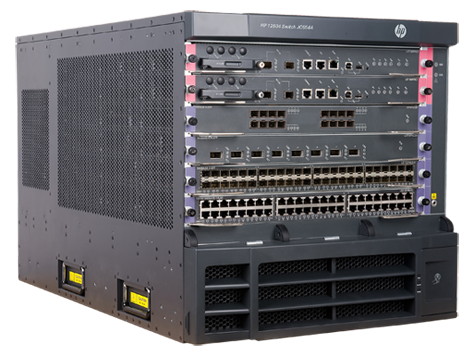

HPE 12504 AC Switch Chassis - JC654A

The SDN-enabled HP 12500 Switch Series offers industry leading scalability for enterprise data center cores giving you significantly higher throughput with 24.3 Tbps switching capacity. Along with scalability you get high performance 10/40/100GbE line cards.

With high scalability and performance, the new core switch series extends the value of your installed base and also delivers high availability and resilience with redundant fabrics, power supplies and fan trays. Customers will find great value in Comware 7 advanced features, including IRF, MDC, SPB and EVI.

Product Information

Differentiator
The HP 12504 Switch Chassis is an 4-slot AC-powered modular next-generation switching platform that delivers the scalablity and performance needed in the data center

Ports
4 open module slots
Supports a maximum of 192 Gigabit Ethernet ports or 192 1/10GbE ports or 64 40GbE ports or 16 100GbE ports, or a combination
Included

Memory and processor
PowerPC @ 400 MHz
128 MB RAM

Throughput
1920 Mpps

Routing/switching capacity
3240 Gb/s

Management features
IMC – Intelligent Management Center
command-line interface
out-of-band management (serial RS-232C)
SNMP Manager
Telnet
RMON1
FTP
in-line and out-of-band
terminal interface (serial RS-232C)
modem interface

Dimensions (W x D x H)
17.4 x 27.87 x 17.4 in (44.2 x 70.8 x 44.2 cm)
Weight
132.28 lb (60 kg)

What's in the box
(1) HP 12504 AC Switch Chassis
Warranty
1 year, advance replacement, 10 calendar day, phone support, software releases
