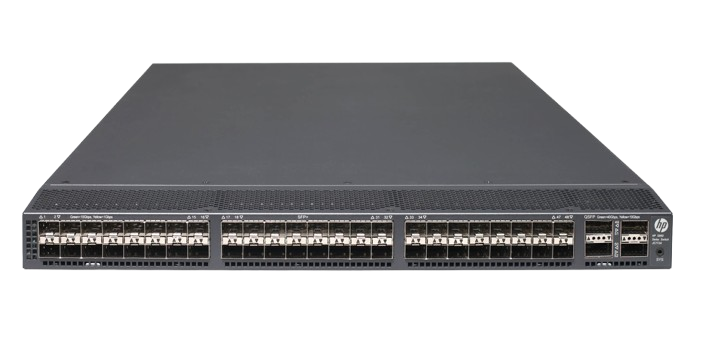

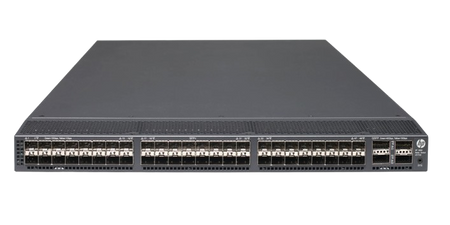

HPE Procurve JC772A 5900AF -48XG-4QSFP+ SWITCH

HPE Procurve JC772A 5900AF-48 Port x 1 Gigabit / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ ports Managed Switch

The HPE JC772A is a part of the HPE 5900AF Switch Series. It has 48 fixed 1000/10000 SFP+ ports, 4 QSFP+ 40-GbE ports, 1 RJ-45 serial console port and features QoS, jumbo frames, and Layer 2 and 3 support. This is a managed Rack-Mountable unit with a 128000 entry MAC address table.

The 5900AF switch enables customers to scale their server-edge 10 GbE ToR deployments to heights with high-density 48 x 10 GbE ports delivered in a 1 RU design; 4 x 40 GbE uplinks back the high server port density to deliver availability of needed bandwidth for demanding applications.

Specifications

Brand: HPE
Model: JC772A
MPN: JC772A

General:

Device Type: Switch - 48 ports - managed
Enclosure Type: Rack-mountable - 1U
Subtype: 10 Gigabit Ethernet
Ports: 48 x 10/100/1000/10000 + 4 x 40 Gigabit QSFP+
Performance: Throughput : 952 Mpps Routing/switching capacity : 1280 Gbps
Capacity: Routing table entries : 16000
MAC Address Table Size: 128K entries
Jumbo Frame Support: Yes
Routing Protocol: OSPF, BGP-4, RIP-1, RIP-2, BGP, VRRP, OSPFv2, static IP routing, ECMP
Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, CLI
Authentication Method: Secure Shell (SSH), Secure Shell v.2 (SSH2)

Features: DHCP support, ARP support, VLAN support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Weighted Random Early Detection (WRED), Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard

Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an
RAM: 2 GB - SDRAM
Flash Memory: 512 MB

Expansion & Connectivity

Interfaces: 48 x 10Gb Ethernet - SFP+ 4 x 40Gb Ethernet - QSFP+ 1 x console - RJ-45 - management 1 x USB 2.0 - Type A 1 x RJ-45 - management

Power

Power Device: Internal power supply - hot-plug
Installed Qty: 0 (installed) / 2 (max)
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 260 Watt

Miscellaneous

Compliant Standards: GOST, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, NOM, VCCI Class A ITE, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, FDA, CSA C22.2 No. 60950-1, EN 60825-1

Dimensions & Weight

Width: 17.3 in
Depth: 26 in
Height: 1.7 in
Weight: 28.7 lbs

Environmental Parameters

Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 10 - 90% (non-condensing)
